Introduction
The Kärcher SC4 Easy-Fix Canister Steam Cleaner is a powerful and versatile appliance designed for deep cleaning various household surfaces using only steam. With its 2000-watt motor and 3.5 bar pressure, it effectively tackles dirt, grime, and stains without the need for harsh chemicals. This manual provides essential information for safe and efficient operation, setup, maintenance, and troubleshooting.
Figure 1: Kärcher SC4 Easy-Fix Steam Cleaner. This image displays the main unit of the steam cleaner, featuring its distinctive yellow and grey design, along with the attached floor nozzle and handle.
Installation
Before first use, ensure all components are present and undamaged. The SC4 Easy-Fix features a twin-tank system for continuous steam, allowing for uninterrupted cleaning sessions. This design is a significant time-saver as it allows refilling the water tank during operation.
- Déballer les composants : Retirez soigneusement le nettoyeur vapeur et tous ses accessoires de leur emballage.
- Assemble Floor Nozzle: Attach the extension tubes to the hand gun, then connect the Easy-Fix floor nozzle to the extension tubes.
- Remplissez le réservoir d'eau : Remove the removable fresh water tank and fill it with tap water. Reinsert the tank into the unit.
- Connecter l'alimentation : Branchez le cordon d'alimentation dans une prise électrique appropriée (100 V).
- Mise sous tension : Switch on the appliance. The heating indicator light will illuminate. Wait for the light to turn off, indicating the operating pressure has been reached.
Figure 2: Continuous Use Feature. This image highlights the continuous use capability of the SC4 Easy-Fix, showing the steam cleaner with an icon indicating its ability to be refilled during operation for extended cleaning.
Mode d'emploi
The Kärcher SC4 Easy-Fix is designed for effective cleaning across a variety of surfaces. Always test steam on an inconspicuous area first, especially on delicate materials.
Fonctionnement général
- Contrôle de la vapeur : Use the adjustable steam control on the hand gun to select the appropriate steam intensity for the cleaning task. Higher intensity for stubborn dirt, lower for delicate surfaces.
- Verrouillage de sécurité : The steam gun features a safety lock to prevent accidental steam release. Engage the lock when not actively steaming.
Cleaning Specific Surfaces
- Sols durs : Attach the Easy-Fix floor nozzle with a microfiber cloth. Move the nozzle slowly over the floor for optimal cleaning.
- Carrelage et joints : Use the hand nozzle with a small brush attachment for concentrated steam on stubborn areas.
- Surfaces de cuisine : The hand nozzle is ideal for cleaning stovetops, range hoods, and sinks. For greasy stains, apply steam directly and wipe with a cloth.
- Tapisserie d'ameublement et tissus : Use the hand nozzle with a terry cloth cover. Hold the nozzle slightly away from the fabric and steam gently. Do not oversaturate.
- Fenêtres et miroirs : Use the window nozzle (if included) or the hand nozzle with a clean cloth. Wipe dry immediately after steaming to prevent streaks.
Figure 3 : Applications de nettoyage polyvalentes. This diagram illustrates the wide range of uses for the Kärcher SC4 Easy-Fix, demonstrating its effectiveness in cleaning various areas such as bathrooms, kitchens, and living spaces, including floors, tiles, and fixtures.
Figure 4: Cleaning Effectiveness. This image showcases the cleaning power of the steam cleaner with before-and-after comparisons for sticky floors, mold removal, and greasy kitchen surfaces, demonstrating its ability to achieve thorough cleanliness.
Figure 5: Cleaning a Window Frame. This image shows the steam cleaner being used to effectively clean a window frame, highlighting its precision and ability to reach tight spaces.
Figure 6: Cleaning a Car Seat. This image demonstrates the use of the steam cleaner for cleaning a child's car seat, illustrating its application for upholstery and fabric surfaces.
Entretien
Regular maintenance ensures the longevity and optimal performance of your Kärcher SC4 Easy-Fix steam cleaner.
- Réservoir d'eau vide : After each use, empty any remaining water from the fresh water tank.
- Nettoyer les accessoires : Rinse all nozzles, brushes, and microfiber cloths after use. Machine wash microfiber cloths as per their care instructions.
- Détartrage: Depending on water hardness and frequency of use, the boiler may require descaling. Use Kärcher descaling agents or a suitable alternative as per the product instructions.
- Stockage: Store the steam cleaner and its accessories in a dry, frost-free location. The unit is designed for compact storage of its power cord, pipes, and nozzles.

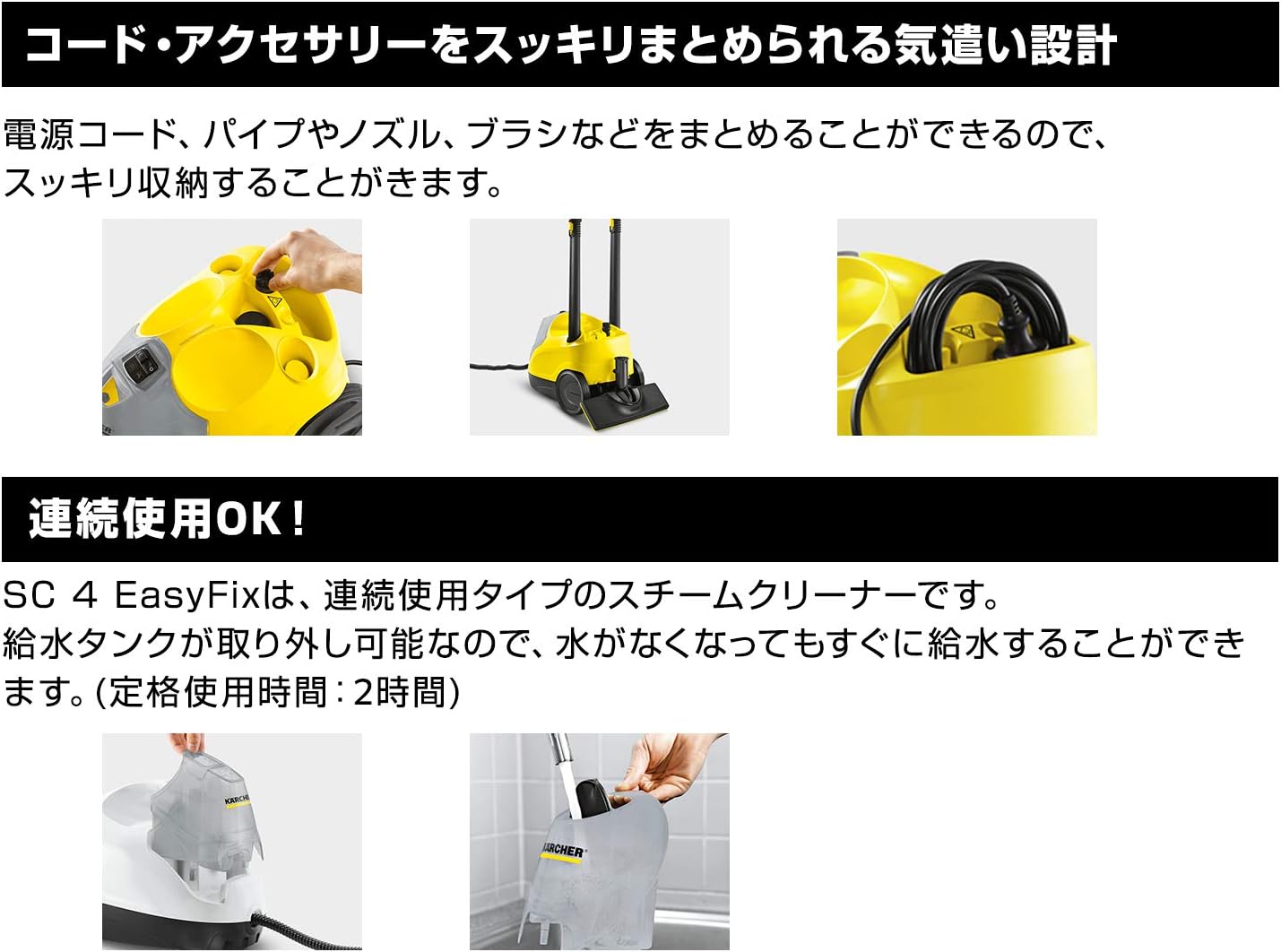

Figure 7: Accessory Storage. This image demonstrates the thoughtful design of the steam cleaner, allowing for neat storage of its power cord, pipes, and various nozzles directly on the unit, promoting tidiness and ease of access.
Figure 8 : Accessoires standard. This image displays the range of standard accessories included with the Kärcher SC4 Easy-Fix, such as the Easy-Fix floor nozzle, hand brush, round brush, and various microfiber cloths, each designed for specific cleaning tasks.
Dépannage
If you encounter issues with your Kärcher SC4 Easy-Fix, refer to the following common problems and solutions:
- No Steam/Low Steam:
- Vérifiez que l'appareil est correctement branché et allumé.
- Assurez-vous que le réservoir d’eau est rempli.
- Allow sufficient time for the unit to heat up (heating indicator light off).
- Check for blockages in nozzles or hoses.
- Fuite d'eau :
- Assurez-vous que tous les accessoires sont bien connectés.
- Check for damaged seals or O-rings.
- L'appareil ne s'allume pas :
- Verify the power cord is fully inserted into both the unit and the wall outlet.
- Vérifiez le disjoncteur.
- Bruit excessif :
- Some noise during heating and operation is normal. If noise is excessive or unusual, contact customer support.
For persistent issues not covered here, please contact Kärcher customer support.
Caractéristiques
| Fonctionnalité | Valeur |
|---|---|
| Nom du modèle | SC4 Easy-Fix |
| Numéro de modèle de l'article | 1.512-457.0 |
| Source d'énergie | Électrique avec fil |
| Voltage | 100V |
| Poids de l'article | 4.1 kilogrammes (9.02 livres) |
| Item Display Dimensions (L x W x H) | 14.96 x 9.88 x 10.75 pouces |
| Recommandation de surface | General Household Surfaces |
| Composants inclus | Boîte |
| Couleur | Jaune |
| Style | Moderne |
