Craftride MG5 Fairing for Harley Davidson Dyna Models

Produit terminéview

The Craftride MG5 Fairing with windshield is designed to provide a striking optical enhancement and noticeably improved wind protection for your Harley Davidson Dyna motorcycle.

This product includes the front fairing, windshield, and a complete mounting kit for secure and precise fitment. It is specifically engineered for Dyna models from 2006-2017, mounting to the lower triple tree with risers, and for Dyna models from 1999-2005, mounting to the 39mm fork.

Composants du produit

The package for your Craftride MG5 Fairing includes the following items:

• Carénage avant
• Pare-brise
• Model-specific Mounting Kit

Note: This product is supplied without a General Operating Permit (ABE). Please check local regulations regarding its use.

Configuration et installation

Proper installation is crucial for the fairing's performance and your safety. Please follow these steps carefully. It is recommended to have this product installed by a qualified mechanic if you are not confident in your abilities.

Remarques générales sur l'installation :

• Ensure your motorcycle is stable and secure on a stand before beginning installation.
• Gather all included components and tools required for the installation.
• Refer to your motorcycle's service manual for specific torque specifications for fork and triple tree components.

Étapes d'installation :

1. Préparer la moto : Park the motorcycle on a level surface and secure it. Ensure the front wheel is off the ground if necessary for access to the fork.
2. Supprimer les composants existants (le cas échéant) : If your motorcycle has an existing headlight fairing or windshield, carefully remove it according to your motorcycle's service manual.
3. Fixez les supports de montage :
   • For Dyna models 2006-2017: Attach the provided mounting brackets to the lower triple tree using the risers. Ensure all fasteners are snug but do not fully tighten yet.
   • For Dyna models 1999-2005: Attach the provided mounting brackets to the 39mm fork tubes. Ensure proper alignment and do not fully tighten.
4. Mount the Fairing Body: Carefully position the main fairing body onto the attached mounting brackets. Align the mounting points and secure with the provided hardware.
5. Install the Windshield: Attach the windshield to the fairing body using the designated screws and grommets. Ensure it is seated correctly and securely.
6. Final Adjustments and Tightening: Once the fairing and windshield are in place, make any necessary minor adjustments for alignment. Systematically tighten all fasteners to the manufacturer's recommended torque specifications. Do not overtighten.
7. Vérifiez le dégagement : Turn the handlebars from lock to lock to ensure there is no interference with the fairing or any cables/hoses.

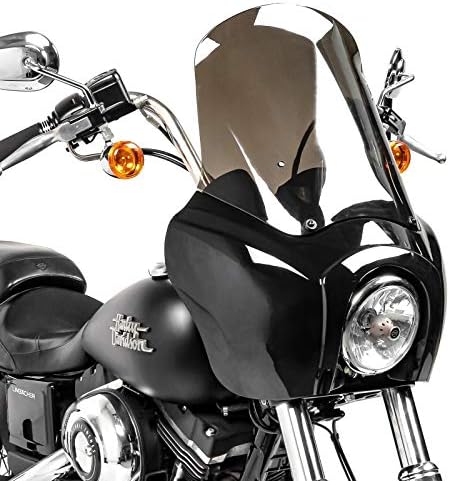

Image 1: Craftride MG5 Fairing mounted on a Harley Davidson Dyna. This view highlights the overall appearance and fitment of the fairing and windshield on the motorcycle's front end.

Image 2: Frontal view of the Craftride MG5 Fairing. This perspective emphasizes the integration of the headlight within the fairing and its sleek design.

Image 3 : Vue aérienne view of the fairing and handlebars. This image provides insight into the rider's perspective and the fairing's position relative to the controls.

Image 4 : Profil latéralfile of the installed fairing. This view illustrates how the fairing extends from the motorcycle's front, offering a sense of its size and aerodynamic shape.

Mode d'emploi

The Craftride MG5 Fairing is a passive component designed to enhance your riding experience by providing improved wind protection and a distinctive aesthetic. Once installed correctly, no further operational steps are required.

• The fairing's primary function is to deflect wind away from the rider, reducing fatigue on longer rides and at higher speeds.
• The smoke-tinted windshield offers a degree of sun glare reduction while maintaining clear visibility.

Entretien

To ensure the longevity and appearance of your Craftride MG5 Fairing, follow these simple maintenance guidelines:

• Nettoyage: Clean the fairing and windshield regularly with mild soap and water. Use a soft cloth to avoid scratching the acrylic surface. Do not use abrasive cleaners or solvents.
• Inspection: Periodically check all mounting hardware for tightness. Vibrations from riding can loosen fasteners over time. Re-tighten as necessary, adhering to recommended torque specifications.
• Dommage: In case of damage to the fairing or windshield, inspect for cracks or structural integrity issues. Replace damaged components if necessary to maintain safety and performance.

Dépannage

Most issues related to the fairing can be resolved by checking the installation. If you encounter problems, consider the following:

• Vibrations excessives : Ensure all mounting bolts are securely tightened. Loose fasteners are a common cause of vibration.
• Mauvaise protection contre le vent : Verify that the fairing and windshield are correctly aligned and positioned. Ensure no gaps exist between the fairing and the motorcycle's front end that could allow excessive airflow.
• Interference with Handlebars: If the handlebars contact the fairing at full lock, re-check the mounting bracket positions and fairing alignment. Minor adjustments may be needed.
• Scratches on Windshield: Use only soft cloths and non-abrasive cleaners for cleaning. Avoid wiping a dry or dusty windshield, as this can cause scratches.

Caractéristiques

Garantie et assistance

Information regarding product warranty and customer support is not provided within this instruction manual. Please refer to the original purchase documentation or contact the retailer/manufacturer directly for details on warranty coverage and support services.
