1. Produit terminéview
The Ideal Standard Connect Air Aquablade Wall-Hung Toilet Pack E008701 is designed for modern bathrooms, offering a blend of innovative technology and sleek design. This pack includes a wall-hung toilet bowl with Aquablade flushing technology and an ultra-thin soft-close toilet seat. Manufactured from vitrified porcelain, it ensures durability and ease of cleaning. Its compact dimensions and invisible fixings make it a space-saving and aesthetically pleasing addition to any bathroom.

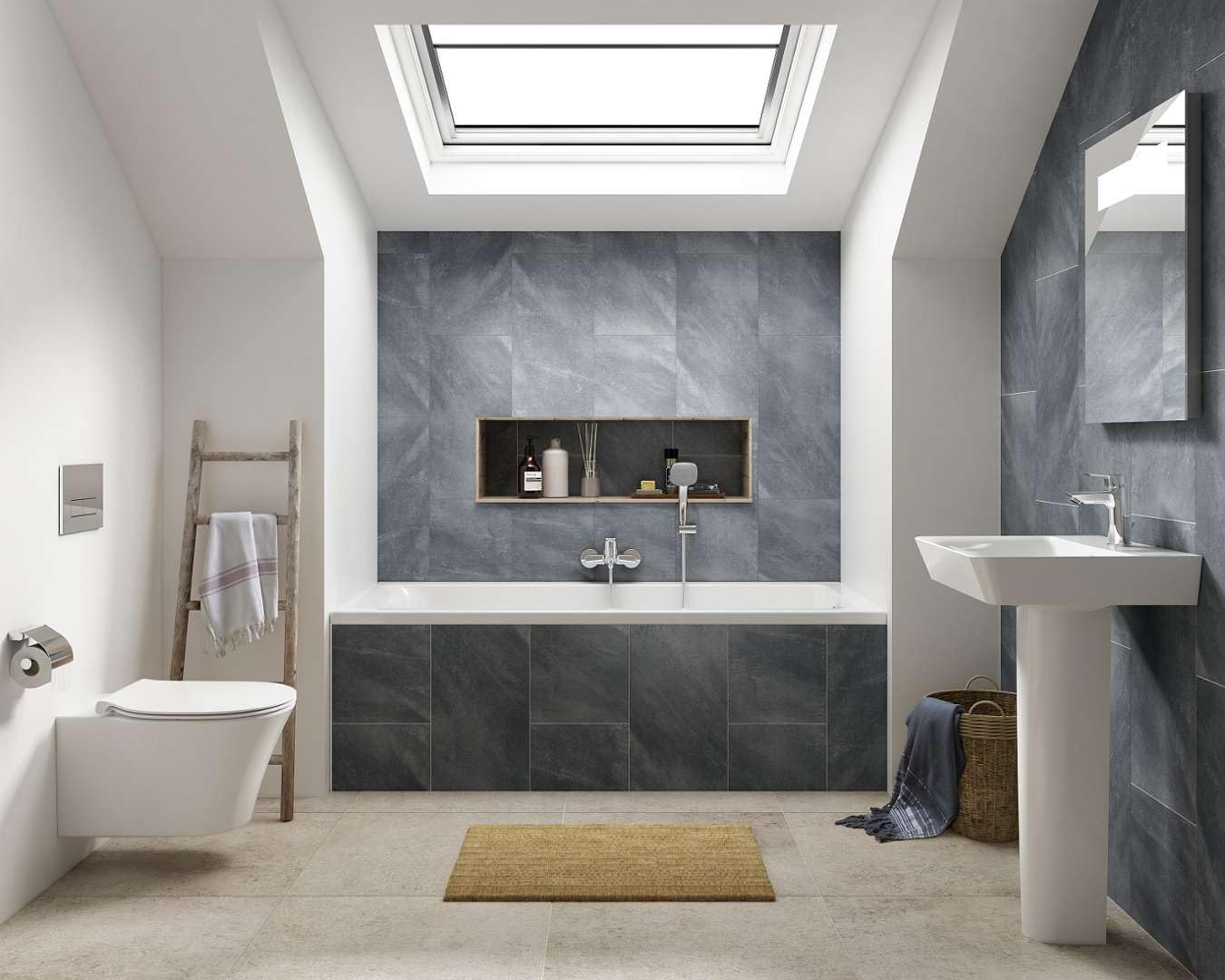

Image 1.1: The Ideal Standard Connect Air Aquablade Wall-Hung Toilet seamlessly integrated into a contemporary bathroom setting.
2. Principales caractéristiques
- Aquablade Flushing Technology: A revolutionary rimless design that provides a powerful and hygienic flush, cleaning 100% of the internal surface of the bowl.
- Ultra-Thin Soft-Close Seat: Made from durable thermoset material, the seat features a soft-close mechanism for quiet operation and enhanced longevity.
- Vitrified Porcelain Construction: Ensures high quality, durability, and a smooth, easy-to-clean white surface.
- Conception peu encombrante : Wall-hung installation with invisible fixings contributes to a minimalist aesthetic and simplifies floor cleaning.
- Independent Water Supply: Designed for direct flush operation.
- Compatibilité: Suitable for installation with Ideal Standard Prosys 120 support frames.
Image 2.1 : Un gros plan view demonstrating the efficient and thorough cleaning action of the Aquablade flushing technology.
3. Spécifications
| Numéro de modèle | E008701 |
| Marque | Norme idéale |
| Couleur | Blanc |
| Matériau (bol) | Vitrified Ceramic |
| Matériau (siège) | Thermoset Plastic |
| Dimensions (L x l x H) | 54.5 cm x 36.5 cm x 35 cm |
| Poids | 27 kilogrammes |
| Type d'installation | Fixation murale |
| Seat Shape | Forme en D |
| Composants inclus | 1 x Wall-Hung Toilet Pack (Bowl and Soft-Close Seat) |
| Pays d'origine | France |
4. Instructions d'installation
Installation of the Ideal Standard Connect Air Aquablade Wall-Hung Toilet requires a compatible wall-mounting frame (bâti-support), such as the Ideal Standard Prosys 120, and a flush plate (not included). It is recommended that installation be performed by a qualified professional.
4.1. Vérifications avant l'installation
- Assurez-vous que tous les composants sont présents et en bon état.
- Verify that the wall-mounting frame is securely installed according to its manufacturer's instructions and is compatible with the E008701 model.
- Confirm water supply and waste connections are correctly positioned.
4.2. Mounting the Toilet Bowl
- Attach the toilet bowl to the threaded rods of the wall-mounting frame.
- Connect the water inlet and waste outlet pipes to the corresponding connections on the toilet bowl. Ensure all seals are correctly seated to prevent leaks.
- Secure the bowl using the invisible fixings provided. Tighten fasteners evenly to avoid stressing the ceramic.
- Perform a flush test to check for leaks and proper water flow.
4.3. Installing the Soft-Close Seat
- Insert the seat hinges into the designated holes on the toilet bowl.
- Secure the hinges from underneath the bowl using the provided screws and washers. Do not overtighten.
- Ensure the seat is properly aligned and the soft-close mechanism functions smoothly.
Image 4.1: Technical drawing showing front and side views with key dimensions for installation planning.
Image 4.2: Technical drawing detailing the top view of the toilet bowl and seat, including hinge measurements.
5. Mode d'emploi
The Ideal Standard Connect Air Aquablade toilet operates with a standard flush mechanism, activated by a flush plate (not included, typically installed with the wall-mounting frame).
5.1. Aquablade Flush System
The Aquablade system delivers a powerful and efficient flush that cleans the entire inner surface of the bowl. It is designed to be quieter and more effective than traditional rimmed toilets, while also preventing splashing.
Video 5.1: Official Ideal Standard video demonstrating the Aquablade flushing technology, highlighting its design, efficiency, and quiet operation.
5.2. Soft-Close Seat Operation
To close the toilet seat, gently push it downwards. The soft-close mechanism will engage, allowing the seat and lid to lower slowly and silently without slamming. Avoid forcing the seat down, as this can damage the mechanism.

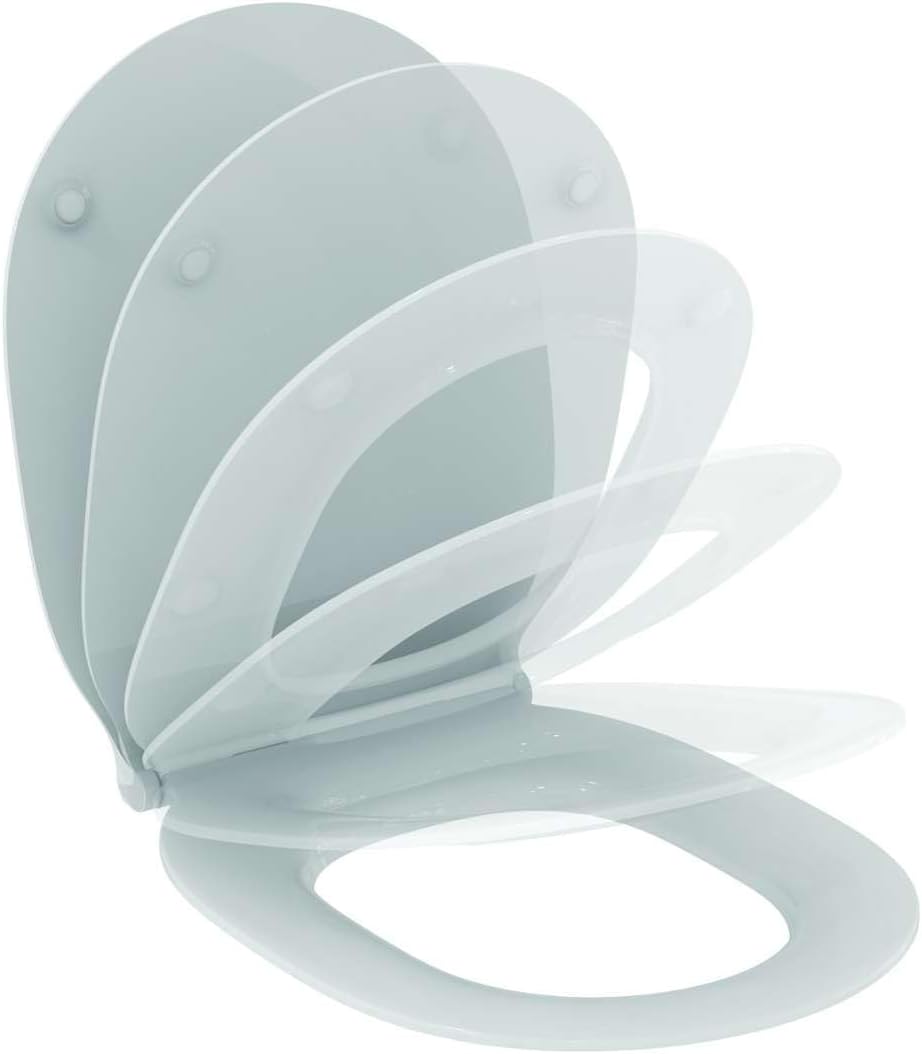

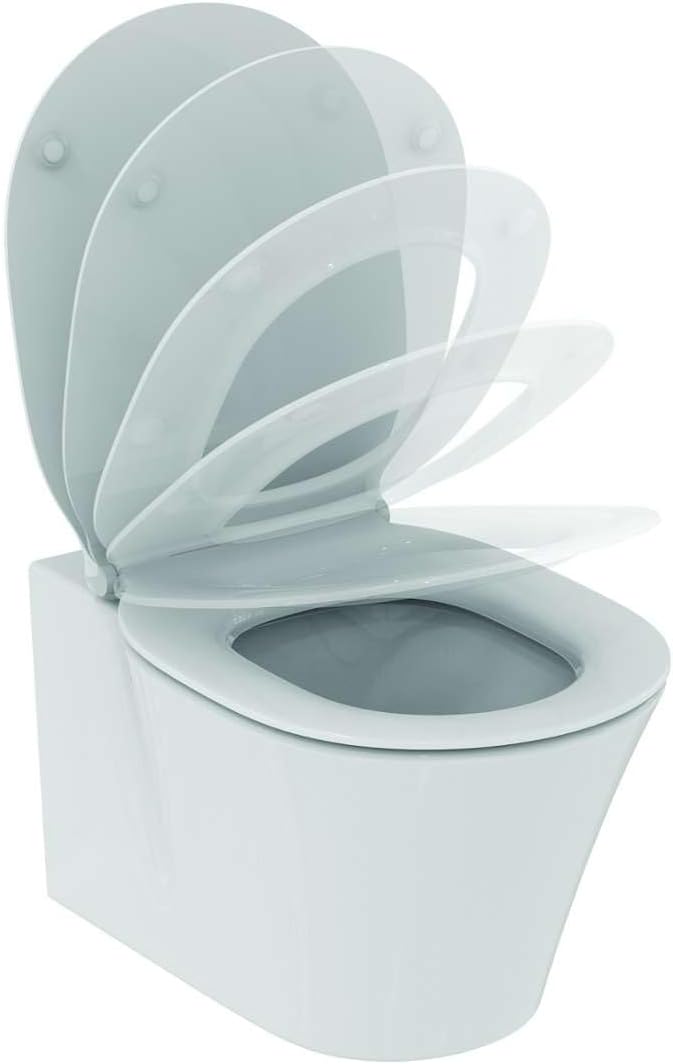

Image 5.1: Visual representation of the soft-close toilet seat mechanism, showing its gentle closing action.
6. Entretien et nettoyage
Regular cleaning and maintenance will ensure the longevity and hygienic performance of your Ideal Standard toilet.
6.1. Nettoyage du bol en céramique
- Utilisez un chiffon doux ou une éponge avec un nettoyant doux et non abrasif pour salle de bain.
- Wipe down the entire surface of the bowl, including the Aquablade channel.
- Rincer abondamment à l'eau claire et sécher avec un chiffon doux pour éviter les taches d'eau.
- Avoid harsh chemicals, abrasive pads, or strong acids, as these can damage the ceramic glaze.
6.2. Nettoyage du siège des toilettes
- Clean the thermoset seat with a soft cloth and mild soapy water.
- Do not use abrasive cleaners, solvents, or disinfectants containing chlorine, as these can discolor or damage the seat material and soft-close mechanism.
- For thorough cleaning, the seat can often be easily removed by releasing the quick-release hinges (refer to seat manufacturer's instructions if different from Ideal Standard).
7. Dépannage
| Problème | Cause possible | Solution |
|---|---|---|
| Chasse d'eau faible | Insufficient water pressure or blockage in the flush mechanism/pipes. | Check water supply valve. Inspect flush mechanism within the wall-mounting frame. Consult a plumber if issues persist. |
| Fuites d'eau | Connexions desserrées ou joints endommagés. | Turn off water supply. Inspect all connections (water inlet, waste outlet) and seals. Tighten connections or replace seals as necessary. Professional assistance recommended. |
| Toilet Seat Not Soft-Closing | Soft-close mechanism damaged or obstructed. | Ensure no debris is obstructing the hinges. If damaged, the soft-close mechanism or entire seat may need replacement. |
| Odeurs désagréables | Improper waste pipe connection or lack of water in the trap. | Ensure waste pipe connections are sealed correctly. Check for sufficient water in the toilet trap. |
8. Garantie et assistance
The Ideal Standard Connect Air Aquablade Wall-Hung Toilet Pack (Model E008701) comes with a manufacturer's warranty.
- Garantie du fabricant : 2 ans.
- Disponibilité des pièces de rechange : Spare parts are available for 15 years.
For warranty claims, technical support, or to purchase spare parts, please contact Ideal Standard customer service or visit their official webConsultez le site. Conservez votre preuve d'achat pour faire valoir la garantie.
Officiel Website: www.idealstandard.com (Please note: This is a generic link. Refer to your product packaging or Ideal Standard's official documentation for region-specific contact information and support.)
