Technical Precision Replacement 120 (Gas) Skid Steer Loader Battery User Manual

Introduction

This manual provides essential instructions for the safe and effective use, installation, and maintenance of your Technical Precision Replacement 120 (Gas) Skid Steer Loader Battery. Please read this manual thoroughly before installation and operation to ensure proper handling and to prevent damage or injury.

Consignes de sécurité

WARNING: Batteries contain corrosive acid and produce explosive gases. Improper handling can cause severe injury or death.

• Portez toujours un équipement de protection individuelle approprié, notamment des lunettes de sécurité et des gants, lorsque vous manipulez des batteries.
• Ensure adequate ventilation when charging or working near batteries to disperse explosive gases.
• Tenez les étincelles, les flammes et les produits du tabac éloignés des piles.
• Évitez tout contact avec l'acide de batterie. En cas de contact, rincez immédiatement à l'eau et consultez un médecin.
• Ne court-circuitez pas les bornes de la batterie.
• Gardez les piles hors de portée des enfants.
• Follow all manufacturer guidelines for the skid steer loader when replacing the battery.

Produit terminéview

The Technical Precision Replacement 120 (Gas) Skid Steer Loader Battery is designed to provide reliable power for compatible skid steer loader models. This is a rechargeable 12-volt battery.

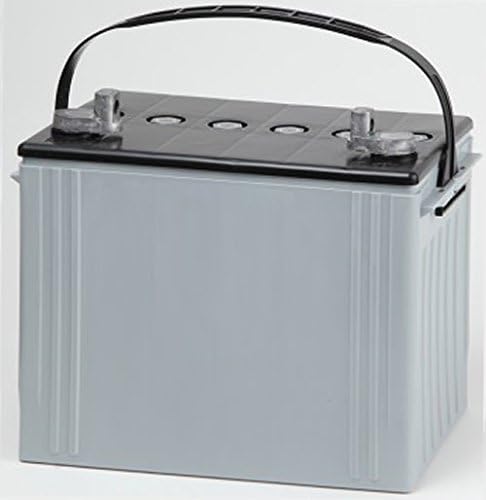

A gray rectangular battery with a black top and a black carrying handle. Two metal terminals are visible on the top surface, indicating positive and negative connections.

Configuration et installation

1. Préparation: Ensure the skid steer loader's ignition is off and the parking brake is engaged. Disconnect any external power sources.
2. La sécurité avant tout : Portez des lunettes de sécurité et des gants.
3. Débranchez l'ancienne batterie : Locate the existing battery. First, disconnect the negative (-) terminal cable, then the positive (+) terminal cable. Carefully remove the old battery from the battery tray.
4. Inspecter et nettoyer : Inspect the battery tray and cables for corrosion or damage. Clean any corrosion with a wire brush and a baking soda/water solution. Ensure the tray is dry before installing the new battery.
5. Installez une nouvelle batterie : Carefully place the Technical Precision replacement battery into the battery tray. Ensure it is seated securely.
6. Connecter les câbles : First, connect the positive (+) terminal cable to the positive post of the new battery. Then, connect the negative (-) terminal cable to the negative post. Ensure all connections are tight and secure.
7. Batterie sécurisée : Use the original battery hold-down clamp or strap to secure the new battery firmly in place.
8. Vérification finale : Double-check all connections and ensure no tools or debris are left in the battery compartment.

Mode d'emploi

This battery functions as a direct replacement for the 120 (Gas) Skid Steer Loader Battery. Once properly installed, the battery will provide power to the loader's electrical system. No special operating procedures are required for the battery itself beyond ensuring proper installation and regular maintenance.

• Always ensure battery terminals are clean and connections are tight for optimal performance.
• Évitez de décharger complètement la batterie, car cela peut réduire sa durée de vie.
• If the loader will be stored for an extended period, consider using a trickle charger to maintain battery health.

Entretien

Regular maintenance extends the life and performance of your battery.

• Inspection du terminal : Periodically inspect battery terminals for corrosion. If corrosion is present, disconnect the battery (negative first, then positive) and clean the terminals and cable clampNettoyez avec une brosse métallique et une solution d'eau et de bicarbonate de soude. Rincez à l'eau claire et séchez soigneusement avant de rebrancher.
• Casing Inspection : Vérifiez la batterie casing for cracks, bulges, or leaks. A damaged battery should be replaced immediately.
• Niveau de charge : Ensure the battery maintains an adequate charge. If the skid steer loader is used infrequently, consider using a compatible battery charger to keep the battery fully charged.
• Stockage: When storing the battery for extended periods, ensure it is fully charged and stored in a cool, dry place. Disconnect it from the vehicle to prevent parasitic drains.

Dépannage

If you experience issues with your battery, consider the following common problems and solutions:

• Engine Cranks Slowly or Not at All:
  • Check battery terminal connections for tightness and corrosion.
  • Verify the battery's charge level. A low charge may require recharging or replacement if the battery is old.
  • Ensure the vehicle's charging system (alternator) is functioning correctly.
• La batterie ne tient pas la charge :
  • Inspect for parasitic drains on the vehicle's electrical system when the ignition is off.
  • Test the battery's health with a battery tester. If the battery is old or damaged, it may need replacement.
• Corrosion des bornes :
  • Clean terminals as described in the Maintenance section. Apply anti-corrosion grease to prevent future buildup.

If problems persist after attempting these troubleshooting steps, consult a qualified technician or contact Technical Precision support.

Caractéristiques

Garantie et assistance

For warranty information or technical support regarding your Technical Precision Replacement 120 (Gas) Skid Steer Loader Battery, please contact Technical Precision directly. Refer to your purchase documentation for specific warranty terms and contact details.
