Manuel d'utilisation du climatiseur fixe Olimpia Splendid Unico Air 8 HP

1. Introduction

This manual provides comprehensive instructions for the installation, operation, maintenance, and troubleshooting of your Olimpia Splendid Unico Air 8 HP fixed air conditioner. Please read this manual carefully before using the appliance to ensure safe and efficient operation. Keep this manual for future reference.

The Olimpia Splendid Unico Air 8 HP is a fixed air conditioner designed without an outdoor unit, offering both cooling and heating functions (heat pump model). It features a slim design, multi-filtration system, and quiet operation.

2. Consignes de sécurité

Respectez toujours les précautions de sécurité suivantes pour éviter toute blessure ou tout dommage à l'appareil :

• Veillez à ce que l'appareil soit installé par un personnel qualifié, conformément à la réglementation locale.
• Ne bloquez pas les entrées ou sorties d’air.
• Do not insert objects into the appliance.
• Débranchez l'alimentation avant le nettoyage ou l'entretien.
• Tenez les enfants éloignés de l'appareil.
• N'utilisez pas l'appareil dans des environnements humides.

3. Produit terminéview

The Olimpia Splendid Unico Air 8 HP is a compact, wall-mounted air conditioning unit that does not require an external condenser unit. It integrates all components within a single indoor unit.

Figure 3.1 : Face avant view of the Olimpia Splendid Unico Air 8 HP, showing the main air outlet and control panel area.

Figure 3.2: Detail of the Olimpia Splendid branding and LED indicator lights on the unit's front panel.

Figure 3.3 : Côté profile of the Unico Air 8 HP, illustrating its compact depth when installed on a wall.

Figure 3.4: Close-up of the "Unico" embossed logo located on the lower right side of the unit.

Figure 3.5 : View of the internal air filter, accessible for cleaning and maintenance.

Figure 3.6: Diagram showing the multi-filtration system, which includes electrostatic and active carbon filters for air purification.

Figure 3.7: The Olimpia Splendid Unico mobile application interface, demonstrating remote control capabilities.

Figure 3.8: Dimensional drawing of the unit, indicating its width (978 mm), height (491 mm), and depth (164 mm).

Figure 3.9: Visual representation of the heat pump function, providing heating for intermediate seasons or supplementing traditional heating.

Figure 3.10: The included remote control for convenient operation of the air conditioner.

4. Installation et configuration

The Olimpia Splendid Unico Air 8 HP is designed for internal installation, eliminating the need for an external unit. Professional installation is highly recommended.

4.1. Sélection du site

Choose a suitable wall location that is structurally sound and allows for proper air circulation. The unit must be installed on an external perimeter wall.

4.2. Installation Steps (Indicative)

1. Position the template on the chosen wall.
2. Drill two holes (approx. 160-162mm diameter) through the wall using a core drill.

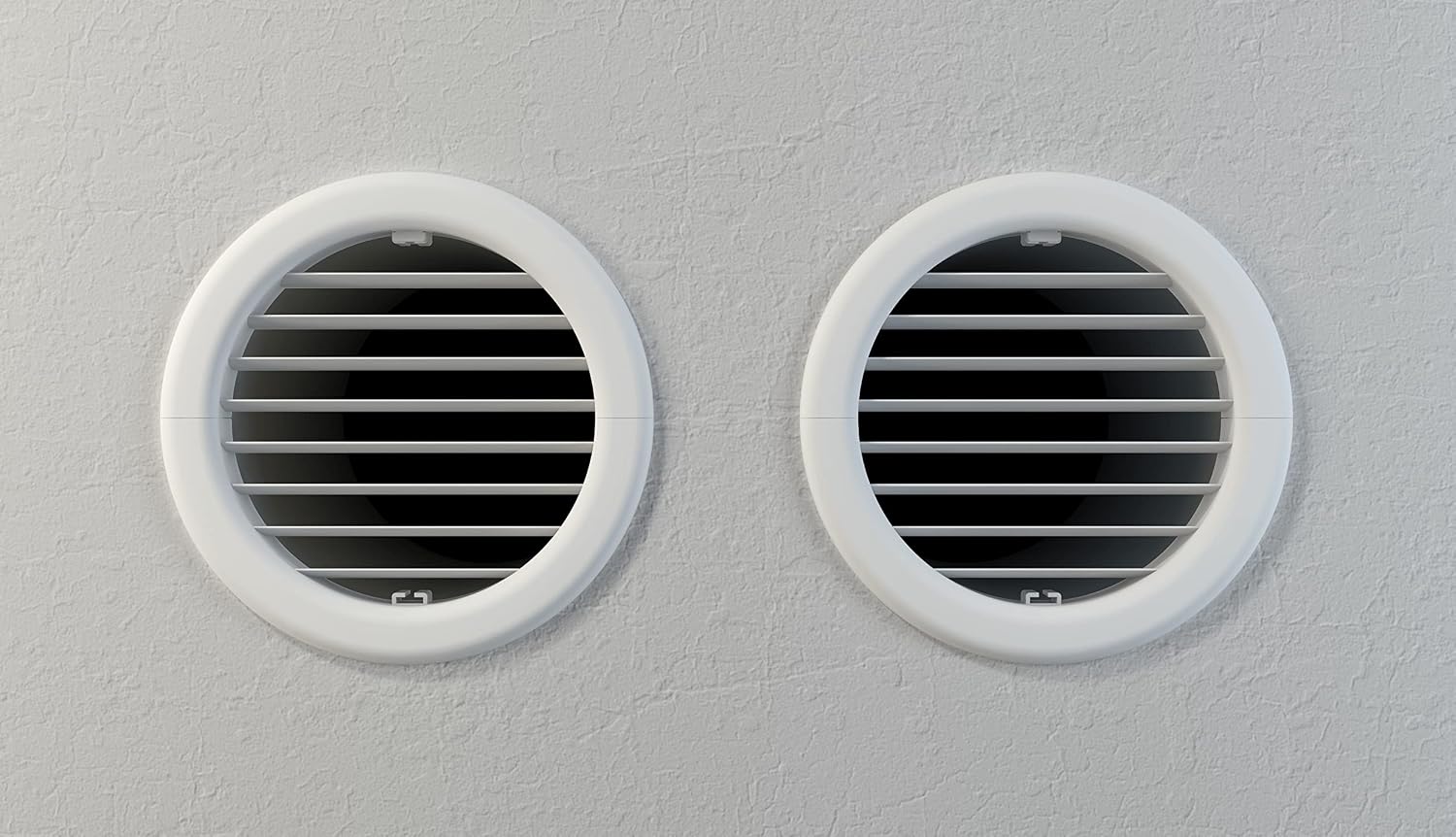

3. Insert the special self-locking grilles for the UNICO unit into the drilled holes.
4. Fix the UNICO unit to the appropriate bracket provided in the packaging.

Figure 4.1: Installation guide illustrating the steps for drilling holes, preparing the wall, and mounting the unit. Note: Professional installation is advised.

Important: Professional installation is strongly recommended. The steps shown are purely indicative.

4.3. Connexion électrique

Connect the unit to a suitable power supply (230 Volt) as per local electrical codes. Ensure the power supply is disconnected before making any electrical connections.

5. Mode d'emploi

The Unico Air 8 HP can be operated via the included remote control or the Olimpia Splendid Unico smartphone app (Wi-Fi kit sold separately).

5.1. Fonctions de la télécommande

Figure 5.1: The remote control layout, showing buttons for power, mode selection, fan speed, temperature adjustment, timer, and ECO mode.

• Bouton d'alimentation : Allume/éteint l'appareil.
• Bouton Mode : Cycles de fonctionnement : Refroidissement, Chauffage, Déshumidification, Ventilation.
• Bouton de vitesse du ventilateur : Régule la vitesse du ventilateur (Faible, Moyenne, Élevée, Automatique).
• Boutons de température (+/-) : Augmente ou diminue la température de consigne.
• Bouton de minuterie : Permet de régler la minuterie de mise en marche ou d'arrêt automatique (jusqu'à 24 heures).
• Bouton ÉCO : Active le mode d'économie d'énergie.
• Bouton Swing : Contrôle l'oscillation verticale du déflecteur d'air.

5.2. Modes de fonctionnement

• Mode de refroidissement : Réduit la température ambiante.
• Heating Mode (Heat Pump): Augmente la température ambiante.
• Mode déshumidification : Élimine l’excès d’humidité de l’air.
• Mode de ventilation: Fait circuler l’air sans refroidissement ni chauffage.

5.3. Contrôle Wi-Fi (en option)

For smartphone control, purchase the optional Wi-Fi kit (model B1015) and download the Olimpia Splendid Unico app from the App Store or Google Play. Follow the app's instructions for pairing and control.

Figure 5.2: The Olimpia Splendid Unico app provides convenient control and scheduling features for your air conditioner.

6. Entretien

Regular maintenance ensures optimal performance and longevity of your Unico Air 8 HP unit. Always disconnect power before performing any maintenance.

6.1. Nettoyage du filtre à air

The unit is equipped with a multi-filtration system (electrostatic and active carbon filters). Clean the air filters regularly, typically every two weeks, or more frequently depending on usage and air quality.

1. Ouvrez le panneau avant de l'appareil.
2. Retirez soigneusement les filtres à air.
3. Nettoyez les filtres à l'aspirateur ou lavez-les à l'eau tiède et au détergent doux.
4. Laisser les filtres sécher complètement avant de les réinsérer.
5. Fermez le panneau avant.

Figure 6.1: Location of the air filter for routine cleaning.

6.2. Unit Exterior Cleaning

Essuyez l'extérieur de l'appareil avec un chiffon doux.amp chiffon. N'utilisez pas de nettoyants abrasifs ou de solvants.

6.3. Condensate Drain (Heat Pump Models)

For heat pump models, automatic condensate drainage occurs during cooling. During heating, a condensate drain might be necessary. Ensure the drain pipe is not obstructed.

7. Dépannage

Before contacting technical support, refer to the following table for common issues and their solutions.

Si le problème persiste après avoir essayé ces solutions, veuillez contacter le service client d'Olimpia Splendid.

8. Spécifications techniques

Figure 8.1: Energy efficiency label for the Unico Air 8 HP.

9. Informations sur la garantie

Olimpia Splendid offers a standard legal warranty. Additionally, by registering your product on the official Olimpia Splendid website within 30 days of purchase, you can receive the Elite Olimpia Splendid Warranty, which adds an additional year to the standard warranty period, free of charge.

For detailed warranty terms and conditions, please refer to the official Olimpia Splendid website ou contacter le support client.

10. Assistance clientèle

For technical assistance, spare parts, or further inquiries, please contact Olimpia Splendid customer support through their official channels:

• Website: Visitez le Olimpia Splendid official website for FAQs, service centers, and contact forms.
• Téléphone: Veuillez vous référer aux coordonnées fournies dans l'emballage de votre produit ou sur le site officiel. website répertoriant les numéros d'assistance locaux.

Lorsque vous contactez le support, veuillez avoir à disposition le numéro de modèle de votre produit (01504) et la date d'achat.
