Whale Gusher Galley Mk3 Manual Freshwater Galley Pump (Model GP0551) User Manual

1. Introduction

The Whale Gusher Galley Mk3 is a manual freshwater galley pump designed for marine applications. This foot-operated pump provides a hands-free solution for water delivery, making it suitable for tasks such as cooking and cleaning on boats up to 80 feet (24m) in length. It is engineered for reliable performance, offering a flow rate of up to 4 gallons (15 liters) per minute.

Les principales caractéristiques comprennent :

• Hands-free foot-operated design for convenience.
• High-flow, self-priming performance, pumping up to 4 GPM.
• Ability to run dry without sustaining damage.
• Flexible installation options with multi-directional inlet and outlet hose connections.
• Compatibility with both fresh and saltwater systems (not for pressurized systems).
• Durable construction backed by a 5-year warranty.

2. Consignes de sécurité

Please read all instructions carefully before installation and operation. Failure to follow these instructions may result in product damage or personal injury.

• Assurez-vous que tous les raccords sont bien fixés et étanches afin d'éviter les fuites.
• This pump is designed for manual operation and is not intended for use in pressurized water systems.
• Always use appropriate tools and safety gear during installation.
• Keep the pump area clear of obstructions during operation.
• Avertissement: Ce produit peut contenir des substances faisant l'objet d'avertissements en vertu de la Proposition 65 de Californie.

3. Contenu du colis

Vérifiez que tous les composants sont présents avant de commencer l'installation :

• Whale Gusher Galley Mk3 Pump (Model GP0551)
• Instruction Manual / Information

4. Configuration et installation

The Whale Gusher Galley Mk3 pump offers flexible installation options to suit various boat layouts. It features multi-directional inlet and outlet hose connections and three mounting options for easy fit in tight spaces.

4.1 Choisir un emplacement

Select a location that allows for comfortable foot operation and provides easy access for hose connections and future maintenance. Ensure the mounting surface is stable and secure.

4.2 Montage de la pompe

1. Position the pump in the desired location. This model features a left-side foot lever.
2. Mark the mounting points through the designated holes on the pump base.
3. Drill pilot holes if necessary, ensuring they are appropriate for your chosen fasteners (not included).
4. Secure the pump firmly to the mounting surface using corrosion-resistant fasteners.

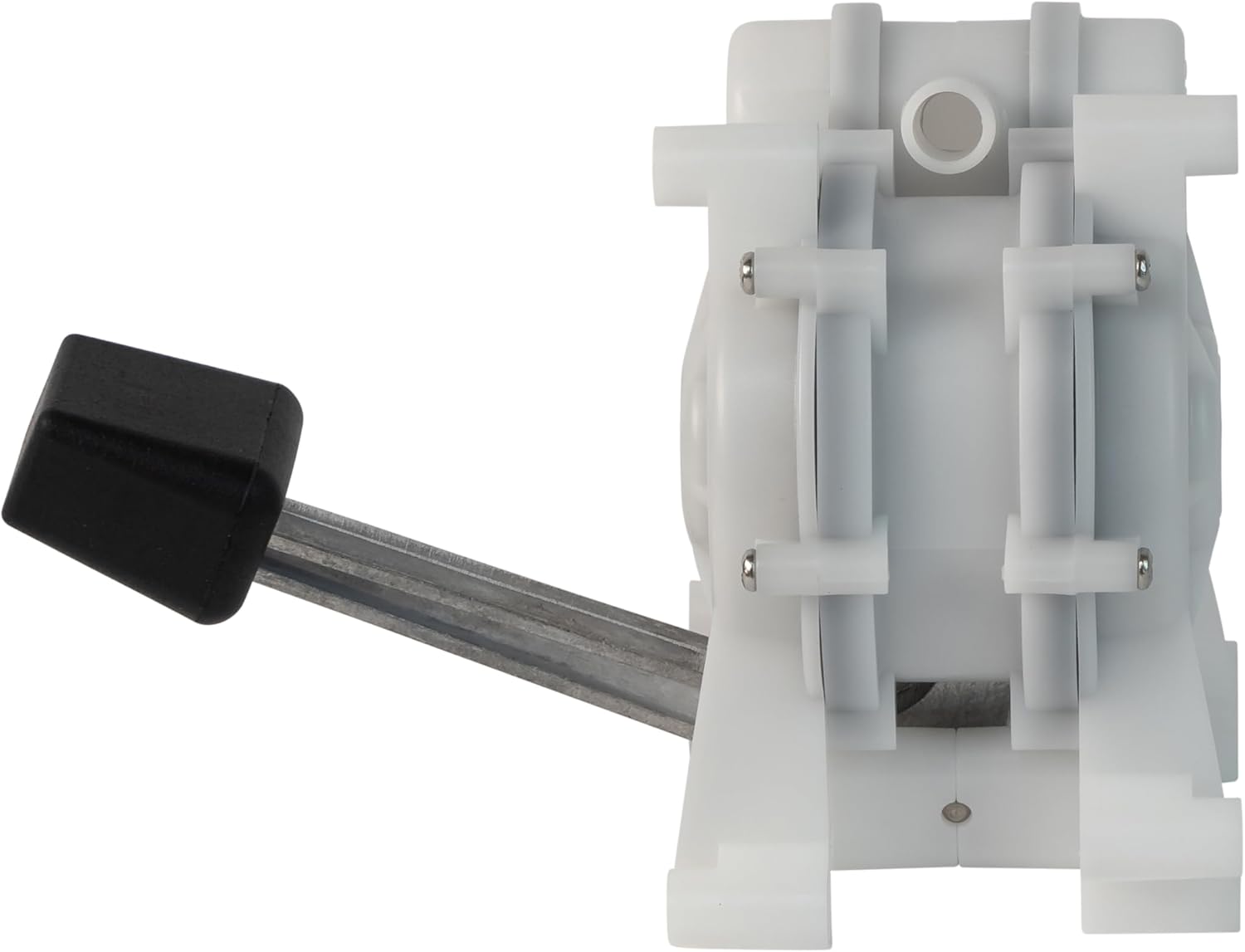

Figure 1 : Côté view of the Whale Gusher Galley Mk3 pump, showing the foot lever and general pump structure. This view is helpful for understanding mounting orientation and hose connection points.

4.3 Hose Connections

The pump features multi-directional inlet and outlet ports. Connect the water supply hose to the inlet and the delivery hose to the outlet. Ensure all hose clamps sont bien serrés pour éviter les fuites.

• Use hoses of appropriate diameter for optimal flow.
• Avoid kinks or sharp bends in the hoses that could restrict water flow.
• This pump is ideal as a priming pump for Whale inline impeller electric pumps.

Figure 2 : De haut en bas view of the Whale Gusher Galley Mk3 pump, illustrating the positions of the inlet and outlet ports for hose attachment.

5. Mode d'emploi

The Whale Gusher Galley Mk3 pump is designed for simple, hands-free operation.

1. Ensure the water source is available and the outlet hose is directed to the desired location (e.g., sink, bucket).
2. Place your foot on the pump's lever.
3. Press the foot lever down and release it. The pump operates with a smooth, double action, delivering water on both the downstroke and upstroke.
4. Continue pumping until the desired amount of water is dispensed.
5. The pump is self-priming and can be operated dry without causing damage, though continuous dry operation is not recommended.

6. Entretien

Regular maintenance ensures the longevity and optimal performance of your Whale Gusher Galley Mk3 pump.

• Inspection: Periodically check all hose connections for tightness and signs of wear or leaks.
• Nettoyage: If using the pump in saltwater, flush it with fresh water after each use to prevent salt buildup.
• Hivérisation: In freezing conditions, ensure the pump and associated plumbing are completely drained to prevent ice damage.
• Pre-filter Recommendation: To prevent small debris (like weeds) from lodging under the rubber valve surface and causing loss of prime, consider installing a simple pre-filter on the inlet hose.

7. Dépannage

8. Spécifications

9. Garantie et assistance

The Whale Gusher Galley Mk3 pump is backed by a Garantie de 5 ans, reflecting Whale's commitment to quality and durability. EU spare part availability is also guaranteed for 5 years.

For technical assistance, warranty claims, or to inquire about spare parts, please contact Whale customer support through their official website or authorized distributors. When contacting support, please have your model number (GP0551) and purchase information readily available.

Whale Official Website: www.pompesbaleines.com
