Whirlpool WPW10420083 Refrigerator Water Valve Instruction Manual

1. Introduction

This manual provides essential information for the safe and effective installation, operation, and maintenance of the Whirlpool WPW10420083 Refrigerator Water Valve. This component is an Original Equipment Manufacturer (OEM) authorized part designed to control the flow of water to your refrigerator's ice maker and water dispenser. Please read these instructions thoroughly before proceeding with any installation or service.

2. Consignes de sécurité

AVERTISSEMENT : Risque de choc électrique et de dégâts d'eau.

• Always disconnect power to the refrigerator before attempting any installation, repair, or maintenance.
• Turn off the main water supply to the refrigerator before disconnecting any water lines.
• Portez un équipement de protection individuelle approprié, tel que des gants et des lunettes de sécurité.
• If you are not comfortable performing this repair, it is recommended to contact a qualified appliance technician.
• Ensure all water connections are secure and leak-free after installation to prevent water damage.

3. Produit terminéview

The Whirlpool WPW10420083 Refrigerator Water Valve is a critical component for refrigerators equipped with an ice maker and water dispenser. It regulates the water supply, ensuring proper filling of the ice maker and dispensing of chilled water. This is an OEM authorized part, ensuring compatibility and performance with various Whirlpool brand models.

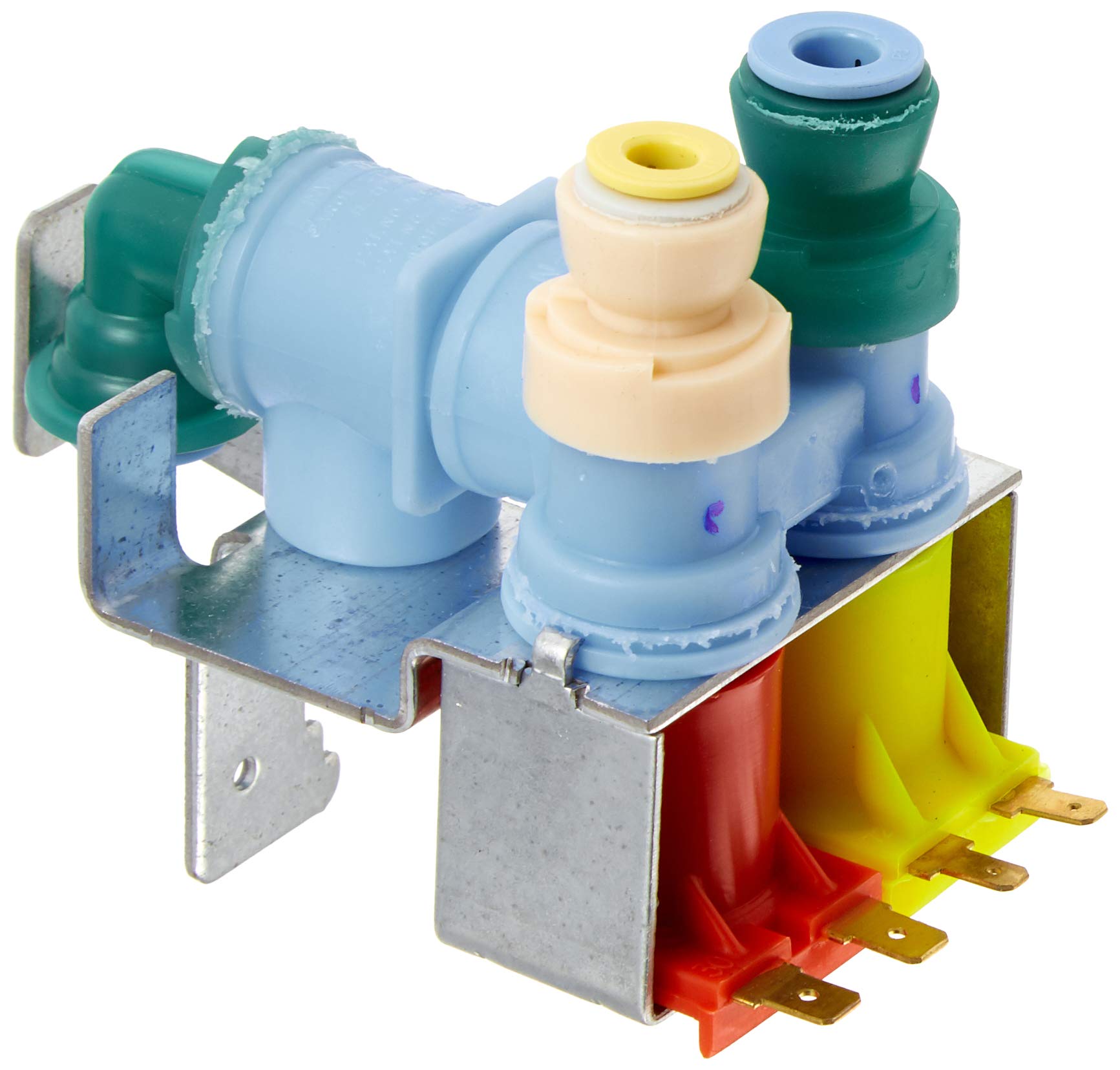

Figure 1: Whirlpool WPW10420083 Refrigerator Water Valve. This image shows the overall structure of the water valve, including its electrical connections and water inlet/outlet ports.

Les principales caractéristiques comprennent :

• OEM Authorized Part: Ensures genuine quality and fit.
• Compatibility: Designed to fit various Whirlpool brand refrigerator models.
• Function: Controls water flow to ice maker and water dispenser.
• Construction: Features metal and plastic components for durability.

4. Instructions d'installation

Replacing a refrigerator water valve requires careful attention to detail. Refer to your specific refrigerator's service manual for detailed, model-specific instructions. The following steps provide a general guide.

1. Préparation:
   • Débranchez le réfrigérateur de l'alimentation électrique.
   • Turn off the household water supply valve to the refrigerator.
   • Move the refrigerator away from the wall to access the rear panel.
   • Place towels or a shallow pan to catch any residual water.
2. Accédez à la vanne :
   • Remove the rear access panel of the refrigerator, typically secured by screws.
   • Locate the existing water inlet valve.
3. Débranchez l'ancienne vanne :
   • Carefully disconnect the electrical wiring harness from the old valve. Note the position of each wire if not color-coded.
   • Disconnect the water supply line from the inlet side of the valve.
   • Disconnect the water lines leading to the ice maker and water dispenser from the outlet side of the valve.
   • Remove any mounting screws or clips securing the old valve and remove it.
4. Installer une nouvelle vanne :
   • Mount the new Whirlpool WPW10420083 water valve in the same position as the old one, securing it with screws or clips.
   • Connect the water lines to the new valve. Ensure connections are tight to prevent leaks. Use new compression fittings if necessary.
   • Connect the electrical wiring harness to the new valve. Ensure all connections are secure.
5. Test and Finalize:
   • Turn on the household water supply valve.
   • Vérifiez l'étanchéité de tous les raccords. Resserrer immédiatement tout raccord qui fuit.
   • Plug the refrigerator back into the electrical power supply.
   • Allow the ice maker to cycle and the water dispenser to operate to purge air from the lines and confirm proper function.
   • Once confirmed, replace the rear access panel and push the refrigerator back into place.

Figure 2 : Détaillé view of the Whirlpool WPW10420083 Water Valve. This image highlights the specific connection points for water lines and electrical wiring, crucial for correct installation.

For visual guidance, many online video tutorials are available. Rechercher "Whirlpool WPW10420083 water valve replacement" on video platforms.

5. Mode d'emploi

The water valve operates automatically in conjunction with your refrigerator's ice maker and water dispenser systems. Once installed correctly and the water and power supplies are restored, the valve will open and close as needed to supply water.

• Fontaine à eau: Pressing the dispenser lever activates the valve to allow water flow.
• Ice Maker: The ice maker's control system signals the valve to open and fill the ice mold with water at appropriate intervals.

Ensure that the main water supply to the refrigerator remains open for continuous operation.

6. Entretien

The Whirlpool WPW10420083 Refrigerator Water Valve is designed for long-term reliability with minimal maintenance. However, periodic checks can help ensure optimal performance and prevent issues.

• Inspection des fuites : Periodically inspect the water lines and connections around the valve for any signs of leaks. Address any leaks immediately by tightening connections or replacing damaged lines.
• Qualité de l'eau : If your household water supply has high sediment content, consider installing an external water filter to protect the valve and other refrigerator components from clogging.
• Hivérisation (le cas échéant) : If the refrigerator is in an unheated area and there's a risk of freezing, disconnect the water supply and drain the lines to prevent damage to the valve from freezing water.

7. Dépannage

If you experience issues with your refrigerator's water dispenser or ice maker after installing the new valve, consider the following troubleshooting steps:

• No Water from Dispenser / No Ice Production:
  • Verify that the main household water supply valve to the refrigerator is fully open.
  • Check if the refrigerator's water filter is clogged and needs replacement.
  • Assurez-vous que le réfrigérateur est branché et qu’il est alimenté.
  • Inspect electrical connections to the water valve for looseness or damage.
  • Confirm that the water lines are not kinked or blocked.
  • If the issue persists, the problem might be with the ice maker assembly itself or other refrigerator components, as noted in some user experiences.
• Fuites d'eau :
  • Immediately turn off the water supply to the refrigerator.
  • Inspect all water line connections at the valve. Tighten any loose fittings.
  • Check for cracks or damage to the water lines or the valve body. Replace any damaged components.
  • Ensure compression fittings are properly seated and tightened.
• Débit d'eau lent :
  • Check the water filter for clogging.
  • Verify adequate household water pressure.
  • Inspect water lines for kinks or obstructions.

If these steps do not resolve the issue, it is advisable to consult your refrigerator's full service manual or contact a qualified service technician.

8. Spécifications

9. Garantie et assistance

This Whirlpool WPW10420083 Refrigerator Water Valve is an OEM authorized part. For specific warranty information, please refer to the documentation provided with your original refrigerator purchase or contact Whirlpool customer service directly. Keep your purchase receipt as proof of purchase.

For further assistance or to locate authorized service providers, please visit the official Whirlpool website ou contactez leur service client :

Whirlpool Officiel Website: www.whirlpool.com
Boutique Whirlpool sur Amazon : Visitez le magasin Whirlpool
