Introduction
Thank you for choosing the SENSE7 Knight Ergonomic Gaming Chair. This manual provides essential information for the assembly, operation, and maintenance of your new chair. Designed for comfort and support during long hours at your desk or intense gaming sessions, the Knight chair combines ergonomic structure with elegant style and advanced features to care for your spine and enhance your experience.
Image: The SENSE7 Knight ergonomic gaming chair, showcasing its sleek design and comfortable appearance.
Avertissements de sécurité
Veuillez lire attentivement avant utilisation :
- Ensure your weight does not exceed the maximum recommended weight limit of 150 kg (330 lb) to maintain the chair's stability and safety.
- Always use the chair as intended for gaming or office work.
- Follow all maintenance instructions to extend the chair's lifespan and prevent accidents.
- Gardez les petites pièces hors de portée des enfants pendant l'assemblage.
Caractéristiques du produit
The SENSE7 Knight chair is equipped with several features designed for your comfort and ergonomic support:
- FlowTech Swing Rocking Function: Activate with one hand for a relaxing rocking motion.
- Adjustable Lumbar Cushion: Provides maximum back relief, essential for long work or gaming sessions.
- Gas Lift System: Allows for precise height adjustment, crucial for maintaining proper posture and comfort.
- Soft Armrests: Designed to ensure proper hand and arm positioning, reducing the risk of muscle tension and pain.
- Multi-directional Nylon Casters: Equipped with a rubber coating for silent movement and protection against floor marks.
- Wider Seat Cushion: The broader, flat cushion minimizes pressure on the legs for enhanced comfort.
Image: Detail of the chair's wider seat cushion, designed to minimize pressure on the legs.
Configuration et assemblage
Your SENSE7 Knight chair requires assembly. Please follow these general steps. For detailed instructions, refer to the included assembly guide.
Composants inclus :
- Dossier
- Siège
- Mécanisme papillon
- Gas Lift Lever
- Base (5 étoiles)
- 5 roues
- Couverture en plastique
- Jeu de vis
- Accoudoirs
- 1 Cushion (Lumbar)
Étapes générales d'assemblage :
- Attach the wheels to the 5-star base.
- Insérez le vérin à gaz dans l'orifice central de la base.
- Attach the butterfly mechanism to the underside of the seat using the provided screws.
- Placez le siège sur le vérin à gaz.
- Fixez les accoudoirs au siège et au dossier.
- Secure the backrest to the seat and armrests.
- Install the lumbar cushion.
Image: Key components for assembly, including the gas lift, stable nylon base, and 60mm PU wheels.
Mode d'emploi
Adjust your SENSE7 Knight chair to achieve optimal comfort and ergonomic support.
Réglage de la hauteur :
To adjust the chair's height, locate the gas lift lever (typically on the right side under the seat). Pull the lever up while seated to lower the chair, or pull it up while standing to raise it. Release the lever at your desired height.
Recline/Rocking Function (FlowTech Swing):
The chair features a rocking mechanism. Use the lever on the side (often the same as the height adjustment or a separate one) to enable or disable the rocking function. Adjust the tension knob underneath the seat to control the resistance of the rocking motion.
Réglage du soutien lombaire :
The lumbar cushion can be adjusted to provide targeted support for your lower back. Position it to align with the natural curve of your spine for maximum comfort.
Positionnement de l'accoudoir :
The soft armrests are designed to support your forearms. Ensure they are positioned to allow your elbows to rest at a comfortable 90-degree angle to your keyboard or desk.
Image: Ergonomic design providing precise support for the neck and lower back, with adjustable lumbar cushion and headrest.
Image: The stable armrest design, ensuring the elbow can be supported in any position without easy movement or damage.
Entretien
Proper care and maintenance will extend the life and appearance of your SENSE7 Knight chair.
Instructions de nettoyage :
- Regularly wipe the synthetic leather surfaces with a soft, damp tissu.
- For tougher stains, use a mild soap solution and wipe clean immediately, then dry thoroughly.
- Évitez d'utiliser des produits chimiques agressifs, des nettoyants abrasifs ou des solvants, car ils peuvent endommager le matériau.
- Vacuum fabric areas (if applicable) to remove dust and debris.
Soins généraux:
- Vérifiez régulièrement le serrage de toutes les vis et boulons. Resserrer si nécessaire.
- Avoid exposing the chair to direct sunlight for prolonged periods to prevent fading and material degradation.
- Ne vous tenez pas debout sur la chaise et ne l'utilisez pas comme marchepied.
Image: The PU synthetic leather fabric, offering high durability, easy cleaning, scratch resistance, and elasticity.
Dépannage
If you encounter any issues with your SENSE7 Knight chair, refer to the following common troubleshooting tips:
- Grincements de chaises : Check all connections and tighten any loose screws. A small amount of silicone lubricant can be applied to moving parts if the squeaking persists.
- La hauteur de la chaise n'est pas réglable : Vérifiez que le levier de vérin à gaz est bien enclenché. Si le problème persiste, il faudra peut-être remplacer le vérin.
- La chaise semble instable : Verify that all wheels are securely attached to the base and that the base is properly connected to the gas lift. Ensure the maximum weight limit is not exceeded.
- Les roues ne roulent pas correctement : Check for debris (hair, dust) caught in the casters and clean them.
Si ces étapes ne résolvent pas le problème, veuillez contacter le service client pour obtenir de l'aide supplémentaire.
Caractéristiques
Detailed specifications for the SENSE7 Knight Ergonomic Gaming Chair:
| Nom du modèle | Chevalier |
| Numéro de modèle de l'article | 5907783039683 |
| Marque | SENSE7 |
| Couleur | Noir |
| Matériel | Synthetic Leather, Rubber, Foam |
| Matériau du cadre | Acier allié |
| Dimensions du produit (L x l x H) | 58 x 68 x 110 cm (22.8 x 26.8 x 43.3 pouces) |
| Dimensions de l'article P x L x H | 60P x 70l x 126H centimeters (23.6D x 27.6W x 49.6H inches) |
| Poids de l'article | 15 kilogrammes (33 livres) |
| Charge maximale recommandée | 150 kilogrammes (330 livres) |
| Assemblage requis | Oui |
| Caractéristiques spéciales | Armrest, Swivel Joint, Padded Leather, Ergonomic, Adjustable Height |
| Conseils d'entretien | Faire le ménage |
| Utilisations recommandées | Jeux |
| Number of Cushions Included | 1 (Lumbar) |

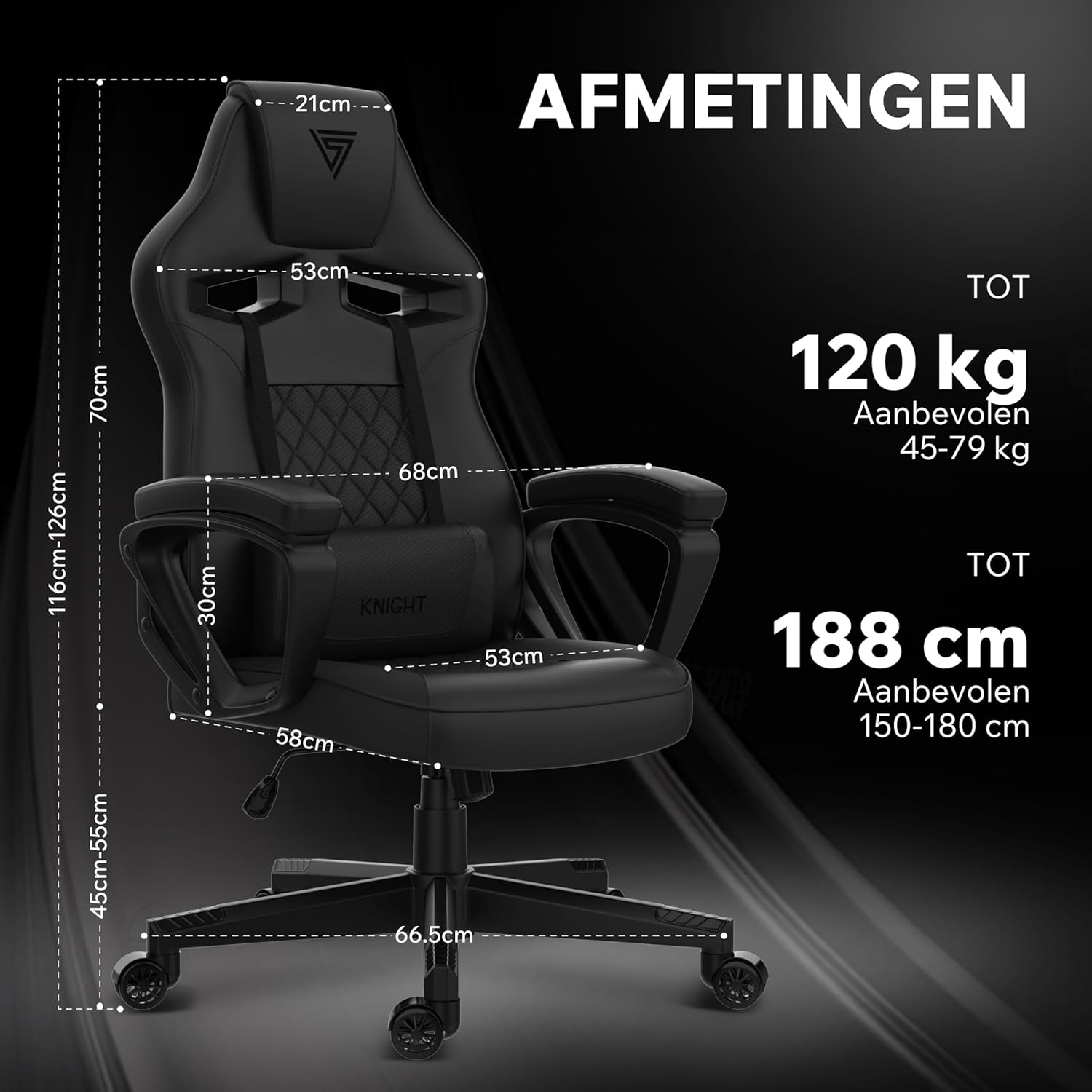

Image: Detailed dimensions of the SENSE7 Knight chair, including height, width, and depth measurements.
Garantie et assistance
SENSE7 products are manufactured to high-quality standards. For information regarding warranty coverage, please refer to the warranty card included with your product or visit the official SENSE7 website.
If you require technical assistance, have questions about assembly, or need to report a defect, please contact SENSE7 customer support. Contact details can typically be found on the product packaging or the official brand website.
Veuillez avoir votre numéro de modèle (5907783039683) et une preuve d'achat à portée de main lorsque vous contactez le support.
