Winsome Wood Entertainment Cart

1. Introduction

This manual provides comprehensive instructions for the assembly, operation, and maintenance of your Winsome Wood Entertainment Cart, Model 92235. This versatile 3-tiered cart, finished in Espresso with chrome accents and casters, is designed to offer convenient storage and serving solutions for your home entertainment needs. Please read this manual thoroughly before assembly and use to ensure safe and proper handling of the product.

Figure 1.1 : Face avant view of the Winsome Wood Entertainment Cart, showcasinet sa conception multifonctionnelle.

2. Consignes de sécurité

Adhering to the following safety guidelines will help prevent injury and damage to the product.

• Capacité de poids : Do not exceed the recommended weight capacity for each section of the cart. Overloading can lead to structural failure and potential injury. Refer to the "Specifications" section for detailed weight limits.
• Stabilité: Always keep the cart on a level and stable surface to prevent tipping. Avoid placing heavy items on upper shelves without proper distribution of weight.
• Mouvement: Use caution when moving the cart, especially when it is loaded. Ensure casters are unlocked before moving and lock them when the cart is stationary to prevent unintended movement.
• Assemblée: Follow all assembly instructions carefully. Ensure all screws and fasteners are securely tightened before use. Loose connections can compromise stability.
• Chaleur et humidité : Avoid placing hot items directly on the wood surface. Use heat-resistant mats or coasters. Protect the cart from excessive moisture and direct sunlight, which can cause warping, discoloration, or damage to the finish.
• Enfants et animaux domestiques : Keep small children and pets away from the cart during assembly. Do not allow children to climb on or play with the cart.

3. Contenu du colis

Avant de commencer l'assemblage, veuillez vérifier que tous les composants énumérés ci-dessous sont présents et en bon état. Si des pièces sont manquantes ou endommagées, veuillez contacter immédiatement le service client.

Note: A Phillips head screwdriver is required for assembly and is not included in the package.

4. Instructions de montage

Assembly of the Winsome Wood Entertainment Cart typically requires two people for ease and stability, though it can be completed by one individual with careful attention. Allow approximately 2-5 hours for complete assembly.

Avant de commencer :

1. Espace de travail clair : Choose a spacious, clean, and well-lit area for assembly. Lay down a blanket or cardboard to protect both the furniture pieces and your floor.
2. Identifier les pièces : Unpack all components and compare them against the parts list in Section 3 and the assembly diagrams. While pieces may not be labeled, match them carefully to the illustrations.
3. Outils: Gather your Phillips head screwdriver and the provided Allen key. If using a power drill, set it to a low torque setting to avoid overtightening screws and damaging the wood.
4. Review Instructions: Read through all assembly steps in the provided diagrammatic instructions before starting.

Étapes d'assemblage (Guide général) :

Refer to the manufacturer's detailed diagrammatic instructions for specific step-by-step guidance.

1. Assembler le châssis principal : Begin by connecting the primary vertical and horizontal wooden panels to form the core structure of the cart. Ensure all cam locks and screws are tightened securely.
2. Installez les étagères : Attach the fixed shelves into their designated slots or with the appropriate hardware.
3. Assembler et installer le tiroir : Construct the drawer box, attach the drawer slides, and then install the drawer into its compartment. Ensure smooth operation.
4. Attach Wine Racks and Glass Holders: Secure the wine bottle racks and the hanging glass holders according to the diagrams.
5. Installer la porte du placard : Attach the cabinet door using the provided hinges. Adjust as necessary for proper alignment and closure.
6. Fixer les roulettes : Securely screw the four casters to the bottom of the cart. Ensure the two locking casters are positioned at the front for easy access.
7. Vérifications finales : Once assembled, gently shake the cart to check for stability. Tighten any loose connections.

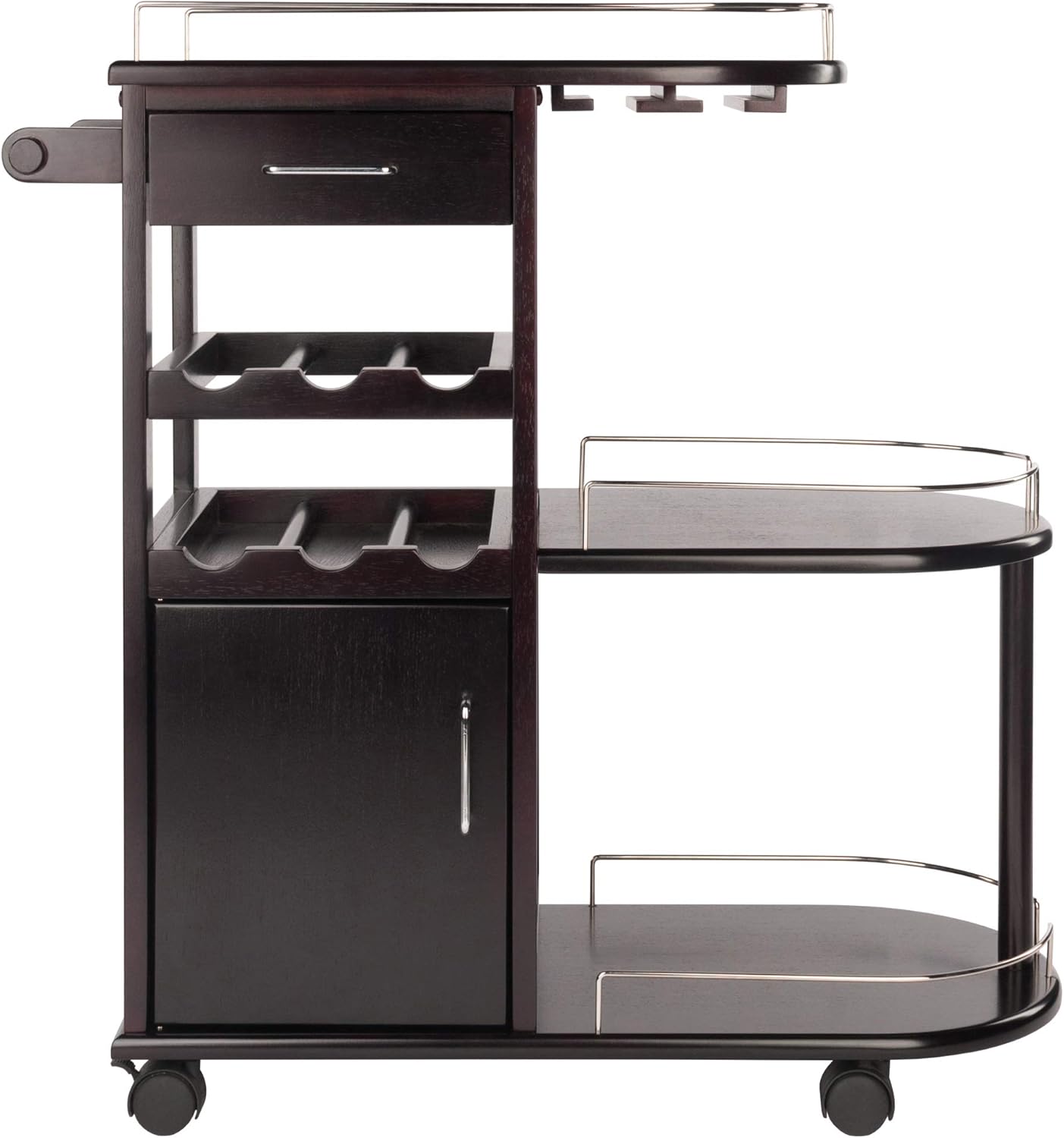

Figure 4.1 : Face avant view of the fully assembled cart.

Figure 4.2: Detail showing the pull-out drawer and wine bottle storage.

5. Mode d'emploi

The Winsome Wood Entertainment Cart is designed for versatile use in your home. Its features allow for organized storage and easy serving.

• Utilisation du stockage :
  • The top surface is suitable for preparing drinks or displaying decorative items.
  • The drawer provides concealed storage for small accessories like corkscrews or bottle openers.
  • The wine racks are designed to hold standard wine bottles horizontally.
  • The hanging glass holders accommodate stemmed glassware. Note that some larger wine glass bases may not fit.
  • The enclosed cabinet offers discreet storage for larger items or bottles.
  • The open shelves provide additional space for bottles, glasses, or other entertainment essentials.
• Mobilité: To move the cart, ensure the locking casters are disengaged. Push the cart gently from the handle or a sturdy frame point. For stationary use, engage the locking casters to prevent accidental movement. The casters perform best on hard, flat surfaces and may be less effective on carpeted areas.
• La répartition du poids: Distribute items evenly across the shelves and within the cabinet to maintain balance and stability. Avoid concentrating heavy loads on one side or shelf.

Figure 5.1: The cart in use, showcasinet ses capacités de stockage.

6. Entretien

Regular maintenance will help preserve the appearance and functionality of your entertainment cart.

• Nettoyage: Essuyez les surfaces avec un chiffon doux, damp cloth. For stubborn marks, use a mild, non-abrasive wood cleaner. Avoid harsh chemicals, abrasive cleaners, or excessive moisture, which can damage the Espresso finish.
• Entretien du bois : Protect the wood from direct sunlight and extreme temperature fluctuations, which can cause fading, cracking, or warping. Use coasters or placemats under hot or wet items to prevent rings and stains.
• Matériel: Periodically check all screws, bolts, and fasteners to ensure they remain tight. Re-tighten as necessary to maintain structural integrity.
• Casters: Keep the caster wheels free of debris (hair, lint, etc.) to ensure smooth rolling. If casters become stiff, a small amount of silicone lubricant can be applied to the axle.

7. Dépannage

This section addresses common issues you might encounter with your Winsome Wood Entertainment Cart.

8. Spécifications

Detailed specifications for the Winsome Wood Entertainment Cart, Model 92235.

Figure 8.1: Dimensional diagram of the cart.

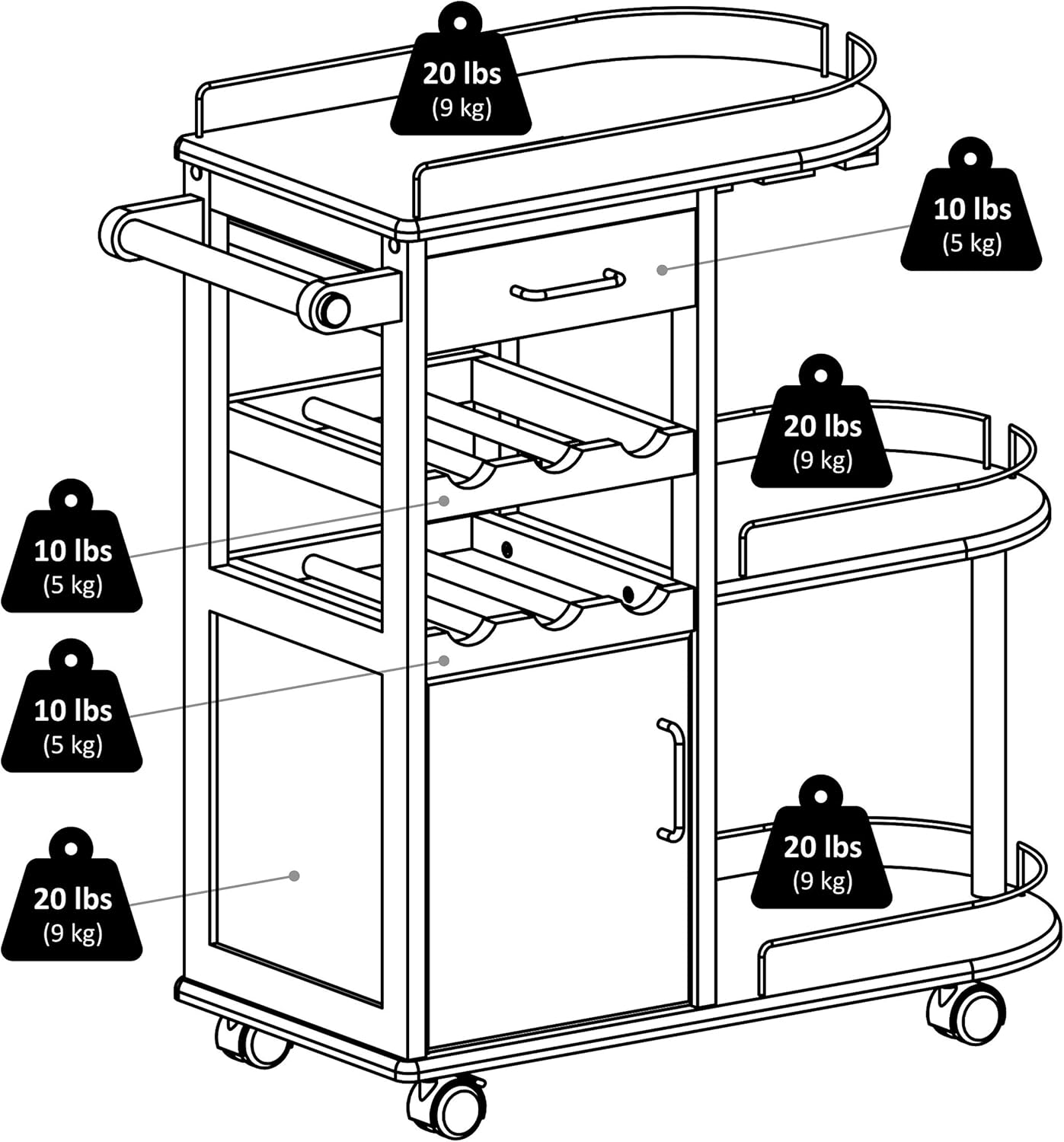

Figure 8.2: Weight capacity diagram for various sections of the cart.

9. Garantie et assistance

For information regarding product warranty, missing parts, or technical support, please contact Winsome Wood directly. Their official website typically provides contact details, FAQs, and information on replacement parts.

Fabricant: Bois Winsome

Lieu d'activité : WOODINVILLE, WA, 98072 US

Please retain your purchase receipt as proof of purchase may be required for warranty claims or support inquiries.
